Laser Chillers and Industrial Chillers — What Fails After Thousands of Operating Hours
Water-cooled chillers are a critical part of every laser installation — protecting the resonator, laser head, and optics from overheating. We service laser and industrial chillers for customers across London, Birmingham, Manchester, Leeds, Glasgow, Frankfurt, Berlin, Hamburg, Munich, Stuttgart, Düsseldorf, Vienna, Graz, Zurich, Basel, Amsterdam, Rotterdam, Antwerp, Brussels, Paris, Lyon, Milan, Turin, Bologna, Rome, Prague, Brno, Bratislava, Warsaw, Poznan, Wroclaw, Katowice, Gliwice, and Gdansk.
Case Study — Termotek P802-18644-4 After 66,756 Operating Hours

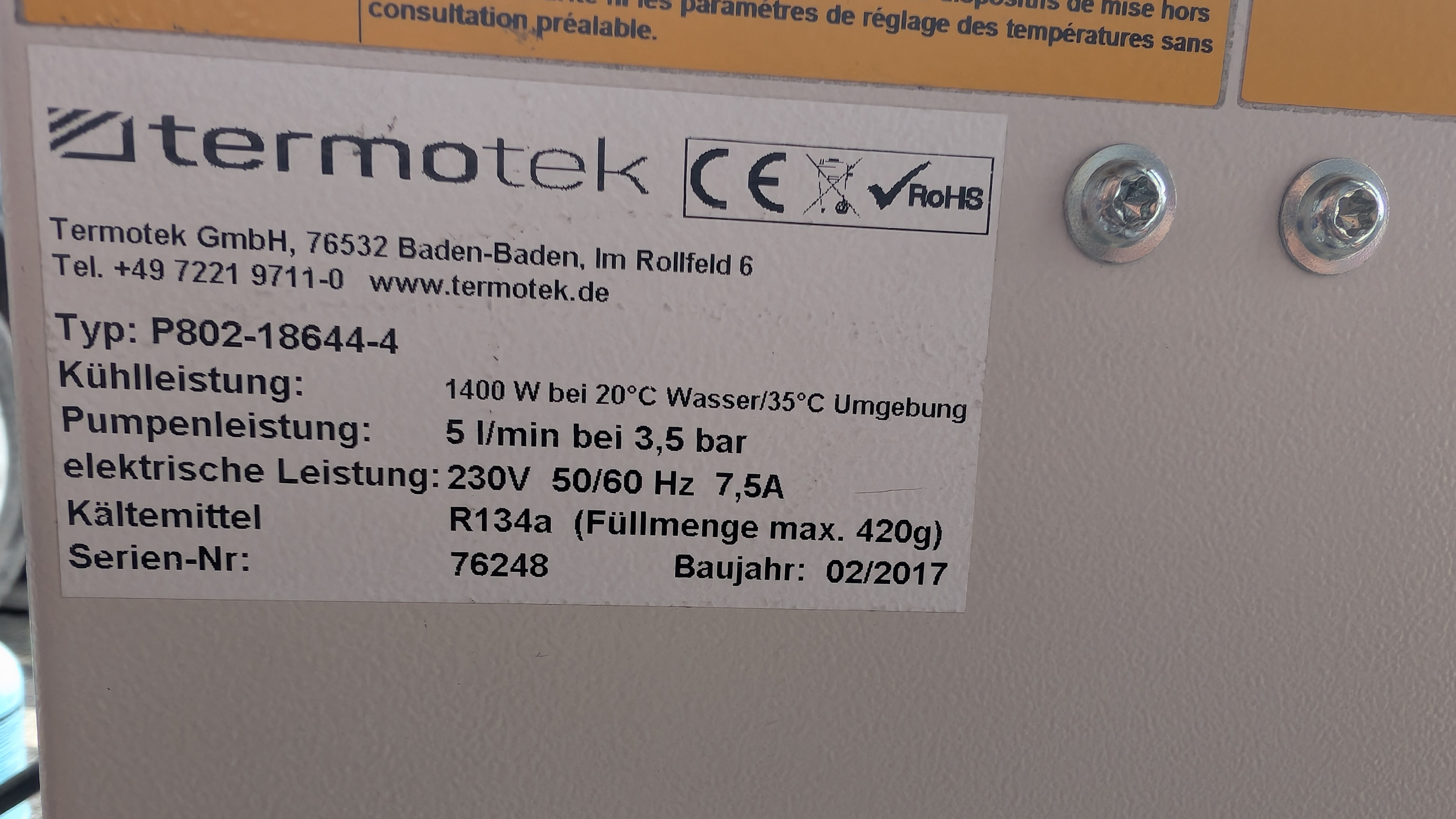

The photos show a Termotek P802-18644-4 laser chiller manufactured by Termotek GmbH (Baden-Baden, Germany). Nameplate specifications:
- Cooling capacity: 1,400 W at 20°C water / 35°C ambient
- Pump: 5 l/min at 3.5 bar
- Power: 230V 50/60Hz 7.5A
- Refrigerant: R134a, max charge 420g
- Year of manufacture: 02/2017

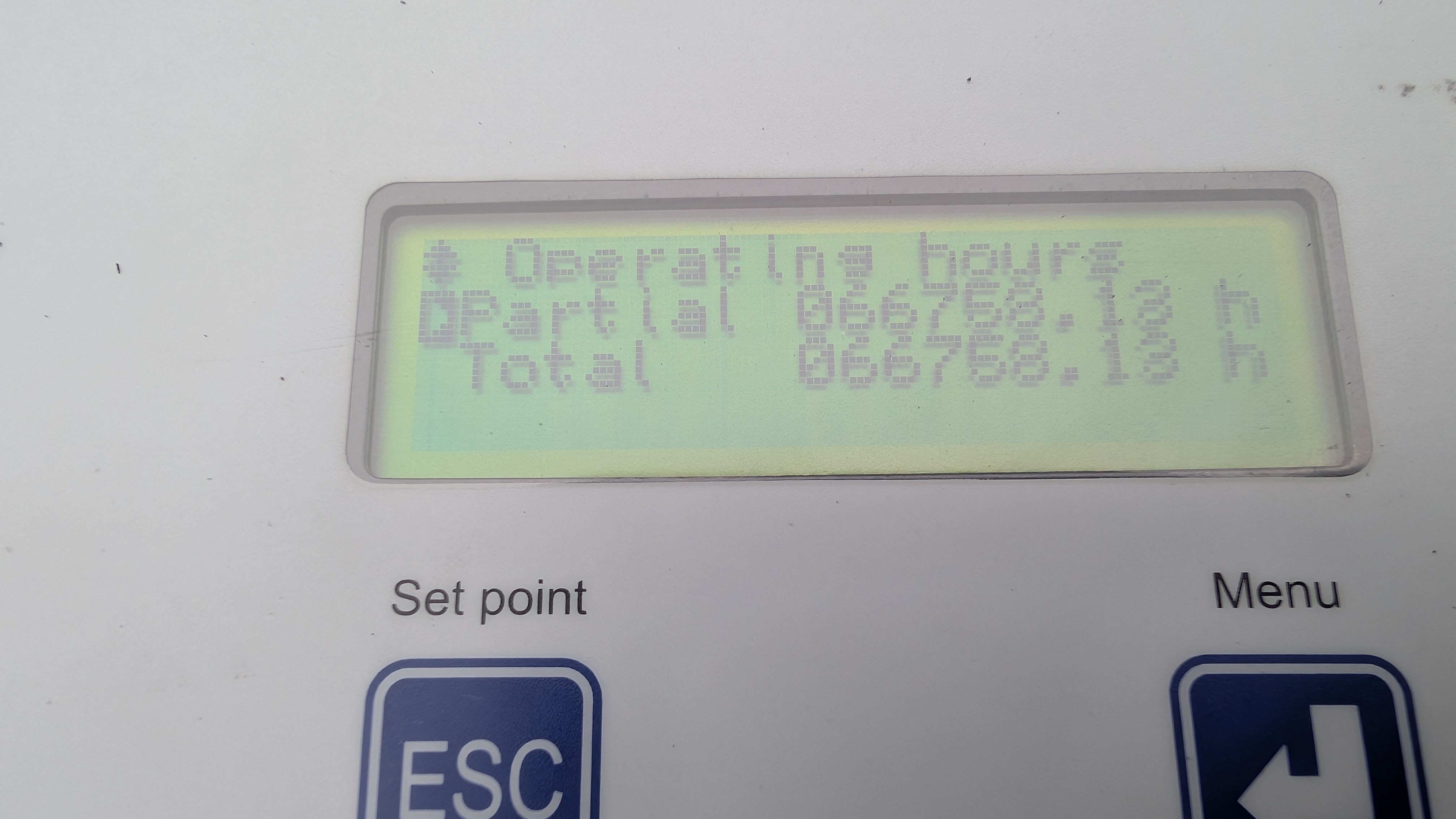

- Operating hours: 66,756 hours — over 7.6 years of continuous operation
The typical service life of a hermetic compressor is 40,000–80,000 hours. This unit is approaching end-of-life for the compressor — compressor inspection, R134a leak check, pump service, and condenser inspection are all required.
Laser Chiller and Industrial Chiller Manufacturers — Full Model List
Termotek (Germany)
Termotek GmbH from Baden-Baden manufactures precision chillers for lasers, electronics, and medical equipment. The P series (P302, P402, P602, P802, P1002, P1502, P2002) is the most common laser chiller in Europe, used with CO₂, fiber, and Nd:YAG lasers. The AT series (AT302, AT502, AT1002) covers air-cooled units for laser welding. The F series serves laboratory circulation.
SMC (Japan/Europe)
The HRS series (HRS012, HRS018, HRS024, HRS050, HRS090, HRS150) is the standard choice for precision fiber and UV lasers in SMT, semiconductor, and medical manufacturing. SMC HRS delivers ±0.1°C temperature stability. We repair: inverter PCBs, pumps, proportional valves, touchscreens.
S&A / Teyu (China — widely used in Europe)
CW-3000, CW-5000, CW-5200, CW-6000, CW-6200, CWFL-1000, CWFL-2000, CWFL-3000 — the most affordable chillers for CO₂ and fiber lasers. Widely used with laser plotters, engravers, and cutting machines. Common failures: pump (€15–40), controller PCB (€80–220), temperature sensor, LCD display.
Thermo Scientific / Neslab (USA)
ThermoFlex 900, 1400, 2500, 5000 and the older Neslab HX-50, HX-75, HX-150, HX-300 — most common in excimer, Ti:Sapphire, and YAG laser labs at research institutes. We repair: PLC controllers, display modules, proportional valves, pressure transducers.
Parker Hannifin / Hyperchill (USA/Europe)
Hyperchill ICE016, ICE025, ICE040, ICE060, PLUS012, PLUS025 — popular in fiber laser welding (IPG, Trumpf) and CNC machining. We repair: Dixell/Carel controllers, compressor power boards, pump seals.
Rittal (Germany)
Blue e+ and LCP Inline — chillers and cooling units for electrical enclosures and high-power laser systems, frequently found with Trumpf TruLaser and Bystronic installations. We repair: Blue e+ PCBs, displays, cooling modules.
Stulz (Germany)
CyberCool, PrecisionCool — chillers for data centres and precision laser installations. We repair: Stulz controllers, Copeland compressors, expansion valves.
Laird Thermal Systems (USA)
Thermoelectric (Peltier) and compressor-based chillers: FHP, HiTemp, Xtra series — precision ±0.01°C chillers for UV and medical lasers. We repair: Peltier modules, PID controllers, power circuits.
Lytron (USA)
RC006, RC010, RC022, RC045 — compact chillers for diode and medical lasers. We repair: PCBs, pumps, electrolytic capacitors.
Most Common Laser Chiller Failures
1. Hermetic Compressor Failure

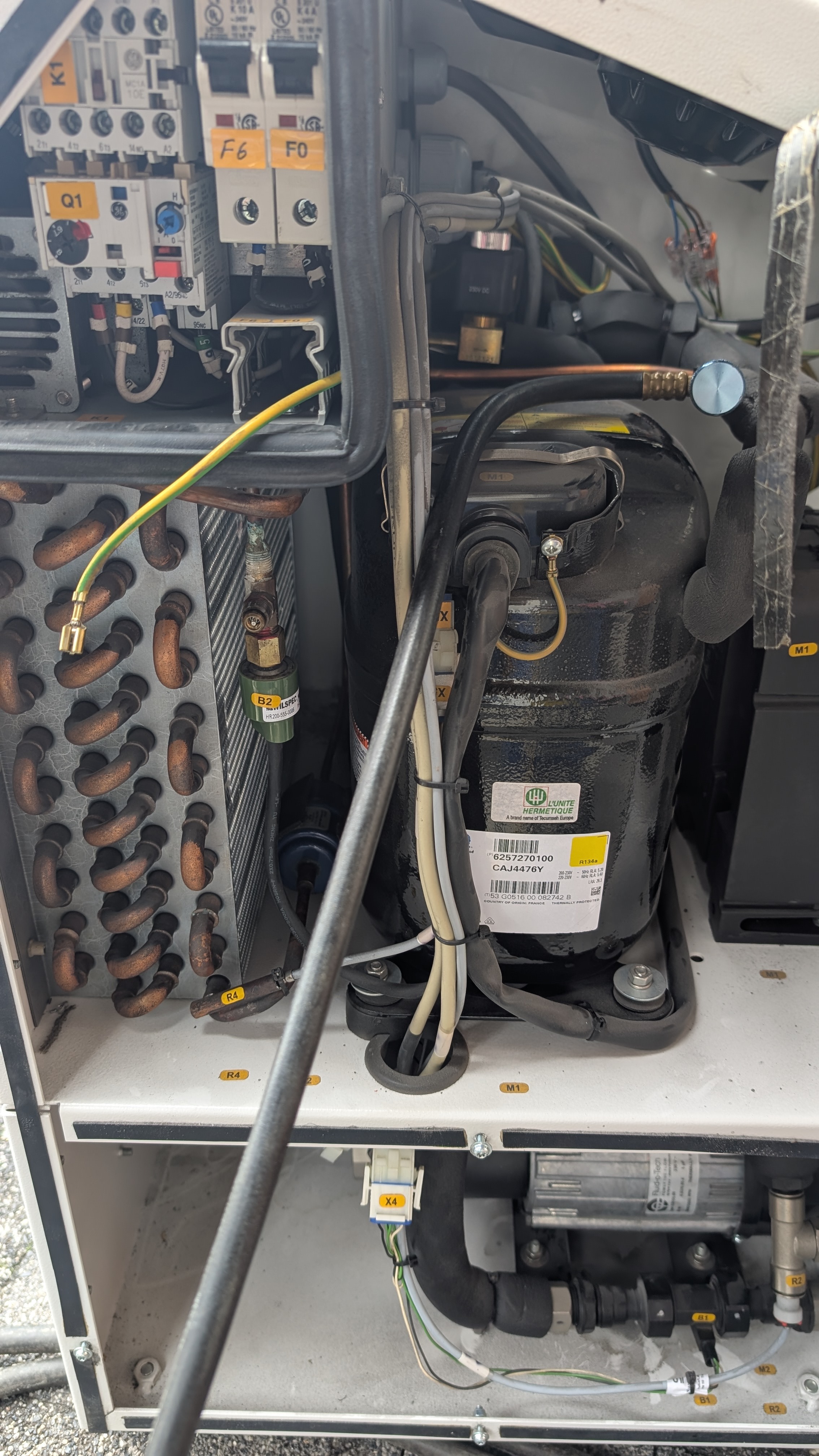

The hermetic compressor (like the CAJ4476Y Tecumseh in the Termotek P802 above) is the most expensive chiller component. After 40,000–80,000 hours: loss of compression, motor winding short-to-ground, bearing seizure. Compressor repair/replacement: €380–980 depending on model (vs. new chiller €2,500–8,000).
2. Refrigerant Leak (R134a, R410a, R407C)
Gaskets and brazed joints develop leaks over time. Symptom: water temperature rises, chiller runs continuously but does not cool, low-pressure alarm only. Repair: UV or electronic leak detection, brazing, refrigerant recharge. Cost: €180–380.
3. Circulation Pump Failure
Mechanical seal wear allows water into the motor or external leakage. Impeller corrosion from non-deionised water or galvanic corrosion. Seal repair or pump replacement: €160–480.
4. Controller PCB Failure
Typical failures: electrolytic capacitors in the PSU, temperature measurement ADC, watchdog circuit, EEPROM data corruption. PCB repair: €180–480.
5. LCD Display / Operator Panel Failure

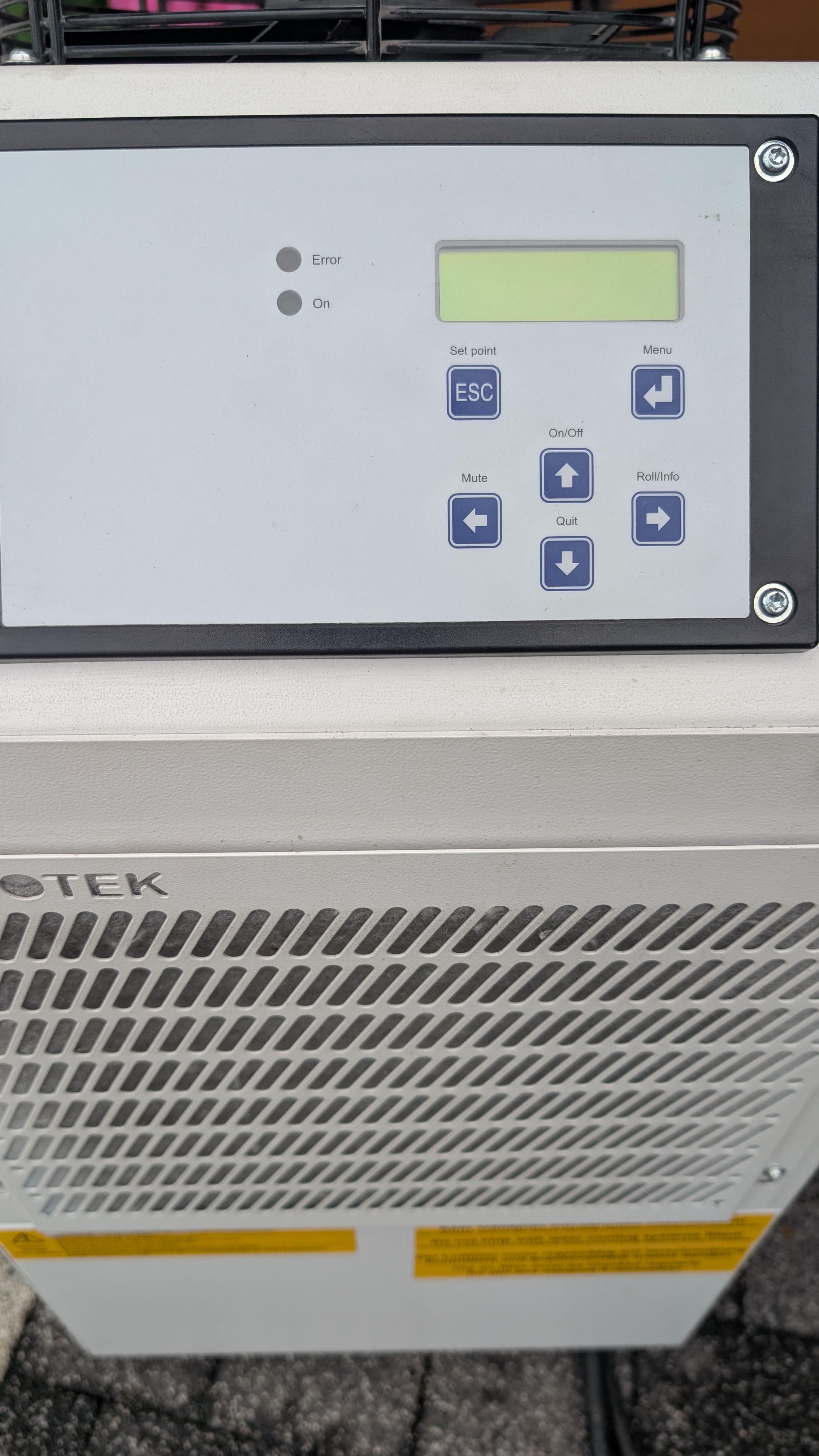

Character LCD (like Termotek P802's 20×4 display) in industrial environments: backlight failure (CCFL or LED), HV driver failure, LCD controller IC failure. Repair instead of replacing the full panel (€600–1,400). Display repair: €120–340.
6. Condenser Fan Failure
Fan stops (bearings, start capacitor) — chiller triggers high-pressure alarm. Fouled condenser severely reduces cooling capacity. Fan service + condenser cleaning: €120–320.
7. Expansion Valve (TXV / EEV) Failure
Thermostatic (TXV) or electronic expansion valve (EEV) controls superheat. Blockage from contamination or moisture causes reduced cooling capacity or liquid slugging. Valve service: €160–420.
8. Flow / Level Sensor Failure
Reed or turbine flow sensor fails — chiller shows "low flow" despite a working pump. Level sensor shows "low level" despite a full tank. Sensor replacement: €80–220.
Pricing
- Hermetic compressor repair/replacement: €380–980
- Refrigerant recharge + leak repair (R134a/R410a/R407C): €180–380
- Pump repair/replacement: €160–480
- Controller PCB repair: €180–480
- LCD display/panel repair: €120–340
- Fan service + condenser cleaning: €120–280
- TXV/EEV valve repair: €160–420
- Diagnostic without repair: €80 (deducted from repair cost)
- Express 48h service: +€120
Return courier to Germany, UK, France, Poland, Czech Republic, Slovakia, Netherlands, Belgium, Austria: included. Italy, Spain, Scandinavia: €35–55 supplement. 12-month warranty. No-fix no-fee.
Service accepts shipments and performs diagnostics Monday to Friday, 08:00–16:00. We handle both single repairs and service agreements for companies with a fleet of laser chillers.
