Jungheinrich multiPILOT — When It Fails, the Entire Forklift Stops
The multiPILOT is Jungheinrich's ergonomic finger-operated armrest controller combining drive, mast hydraulics and fork functions in a single module. After 3–5 years of intensive warehouse use it requires regeneration.
New module from manufacturer: 1,200–2,800 EUR, delivery 4–8 weeks. Our regeneration: 3–5 working days, 180–480 EUR. Same specification, 12-month warranty.
Damaged Jungheinrich multiPILOT? Call us — free phone quote, fast shipping from anywhere in Europe.

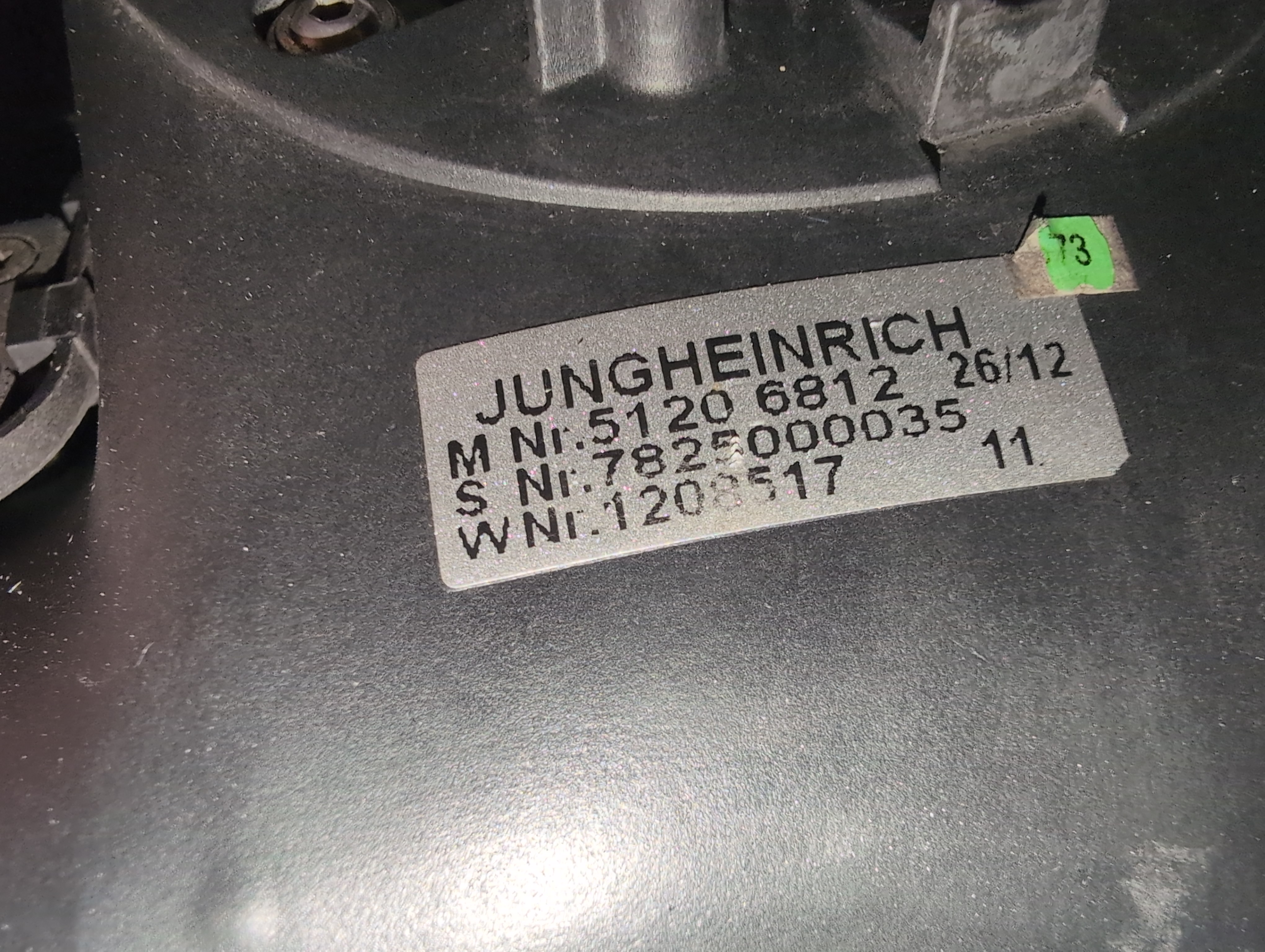

Jungheinrich multiPILOT Part Numbers
| Part number (M Nr.) | Description | Forklift models |
|---|---|---|
| 51206812 | multiPILOT 3-way finger lever | EFG 213–220, ETR 225–345, ETV 214–325 |
| 51304432 | multiPILOT 3-way with X-Y joystick | ETV 110/112/214/216/318/325, ETM 214/216/225 |
| 51012506 | soloPILOT 1-way mini joystick | ETM/ETV 214/216 — older series |
| 26909080 | multiPILOT 3-way (older type, pre-2015) | ETM/ETV 14/16/20/25 |
| 50271577 | multiPILOT 4-way | ETV 320/325/540, ETR 340/345 |
| 50303667 | multiPILOT 3-way ERC version | ERC 212/214/216/220 |
| 51155090 | multiPILOT with speed dial | ETV 216/318 with EWS |
| 51155091 | multiPILOT 5-way | ETV 320/540 with triplex and sideshift |
| 51154023 | multiPILOT joystick ESC version | ESC 214/216/220 |
| 51035798 | multiPILOT mini 2-way | EJE 112/116/120 — electric pallet trucks |
| 50438215 | soloPILOT joystick EFG | EFG 316/320/425/430/435 |
| 51449028 | multiPILOT CAN new series | ETV 216i/318i/325i with CAN FD |
| 50521844 | multiPILOT with LED display | ETR 340/345 with height pre-selection |
| 50345123 | Finger lever single — spare part | Replacement for all 3-way multiPILOT |
| 51008901 | Hall sensor PCB lever board | Spare for 51206812, 51304432, 50271577 |
Most Common Failures — Symptoms and Causes
| Symptom | Probable cause | Regeneration scope |
|---|---|---|
| One hydraulic lever does not respond | Failed Hall sensor (IC1) — FPC flex vibration cracks | Hall sensor SS495/SS411 replacement, FPC repair |
| Lever floats — hydraulics won't stop after release | Hall sensor lost zero calibration, worn return spring | Spring replacement, recalibration, CAN reflash |
| No signal on all levers simultaneously | Failed 5V PSU or CAN transceiver IC2 | 5V PSU repair, CAN transceiver replacement |
| Lever signal jumps at gentle movement | Failed decoupling capacitor C1/C3 | SMD 100nF/1uF capacitor replacement, PCB cleaning |
| Mechanical lever broken or crumbling | Plastic wear after 3–5 years 2-shift operation | Finger lever replacement (part 50345123) |
| No drive after man-dead button | Failed operator-presence micro-switch | Omron D2F or Alps SKHH replacement |
| Error code E11/E12/E13 on display | multiPILOT CAN communication fault | CAN transceiver TJA1050/SN65HVD230 replacement |
| X-Y joystick locks or does not return to centre | Centre spring wear or failed Hall sensor X/Y axis | Centre spring and Hall sensor replacement |
| Corrosion — all functions intermittent | Failed IP54 seal — pressure washer or cold store | Ultrasonic cleaning, IP54 re-sealing |
Pricing — multiPILOT Regeneration
| Regeneration scope | Price |
|---|---|
| 1 Hall sensor replacement (1 lever) | 80–180 EUR |
| 3 Hall sensors replacement (full 3-way multiPILOT) | 180–320 EUR |
| CAN transceiver repair | 120–240 EUR |
| 5V PSU repair | 80–180 EUR |
| Mechanical finger lever set (3 pcs) | 60–140 EUR |
| X-Y joystick spring + calibration | 80–160 EUR |
| Ultrasonic cleaning + IP54 re-sealing | 40–80 EUR |
| Man-detection micro-switch replacement | 40–80 EUR |
| Full regeneration 3-way multiPILOT | 180–420 EUR |
| Full regeneration 5-way multiPILOT | 280–480 EUR |
| soloPILOT / mini joystick regeneration | 120–280 EUR |
| Diagnostic without regeneration | 60 EUR |
Repair time: 3–5 working days. Warranty: 12 months. Service Mon–Fri 08:00–16:00. No-fix no-fee.
